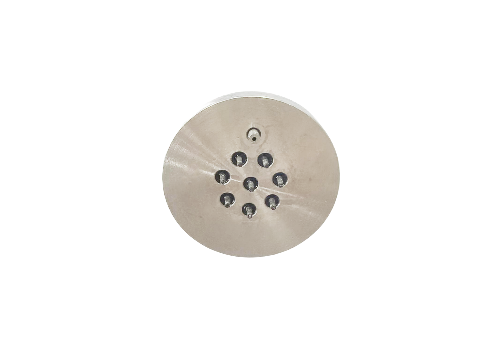

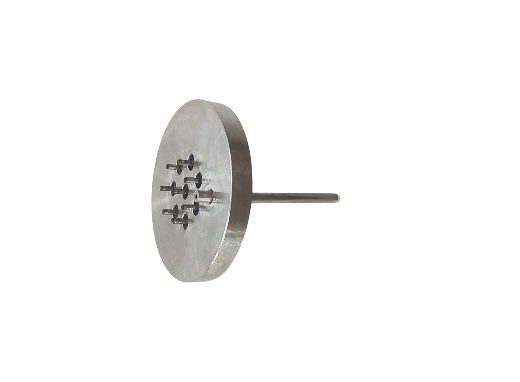

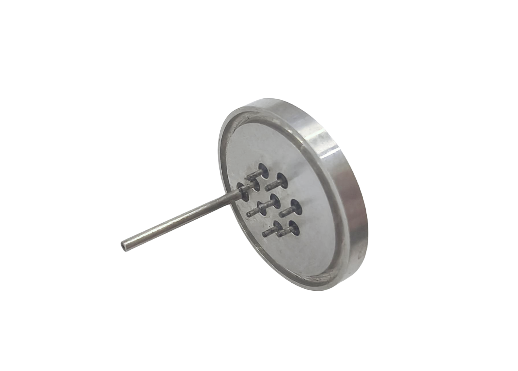

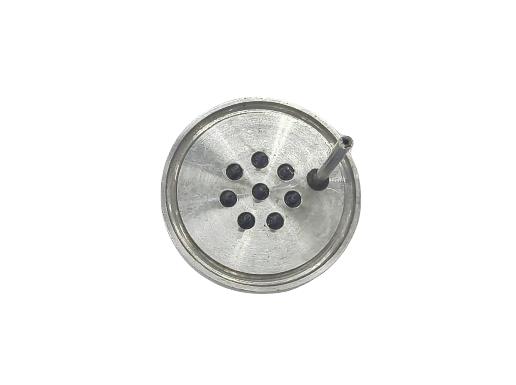

The Hermetic Feedthrough Connectors are an essential component in applications requiring reliable and airtight electrical connections. Designed to provide exceptional performance under demanding conditions, these connectors form a critical part of any Hermetic Connectors System. Their robust construction and precise engineering ensure that they maintain a perfect hermetic seal, preventing any leakage and safeguarding sensitive electronic systems from environmental contaminants.
One of the standout features of these Hermetic Feedthrough Connectors is their superior leak resistance. Each connector undergoes rigorous leak testing at 1.5MPa using nitrogen gas (N2), ensuring that no leakage occurs under high-pressure conditions. This stringent leak test guarantees the integrity of the Hermetic Seal Connectors, making them ideal for use in environments where maintaining a sealed interface is crucial, such as aerospace, medical devices, and industrial instrumentation.
The mounting type for these connectors is a flange mount, which offers secure and stable attachment to panels or enclosures. The flange mount design simplifies installation and provides a durable mechanical interface that can withstand vibration and mechanical stress. This mounting method is especially beneficial in applications where the connector must remain firmly in place to preserve the hermetic seal over long periods or under harsh conditions.
In terms of electrical performance, the Hermetic Feedthrough Connectors support a current rating of up to 10A. This makes them suitable for a wide range of electrical circuits, from low-power signal transmission to moderate current power delivery. Their ability to handle currents up to 10A without compromising the hermetic seal or electrical integrity highlights their versatility and reliability in both signal and power applications.
Additionally, these connectors boast an impressive pressure rating of 1000 Psi, underscoring their capability to perform in high-pressure environments. This pressure rating ensures that the connectors maintain their hermetic properties even when subjected to significant external pressure, making them ideal for use in underwater, aerospace, and high-altitude applications where pressure differentials can be extreme.
The Hermetic Feedthrough Connectors also excel as Hermetic Cable Connectors, facilitating the seamless transition of electrical signals through sealed barriers while maintaining a hermetic environment. Their design allows cables to pass through bulkheads, enclosures, or vacuum chambers without compromising the internal atmosphere, which is critical in sensitive scientific, medical, or industrial equipment.
Overall, the Hermetic Feedthrough Connectors represent a high-quality solution within the Hermetic Connectors System category, combining leak-proof performance, robust mechanical mounting, adequate current capacity, and exceptional pressure resistance. Whether used in aerospace, military, medical, or industrial applications, these connectors provide a dependable hermetic seal and electrical connection that meets the stringent demands of critical systems.
By integrating these Hermetic Seal Connectors into your design, you ensure enhanced reliability, protection against environmental factors, and sustained performance under pressure. Their flange mount configuration simplifies installation while providing a secure and stable connection point. With their excellent leak test results and pressure rating, these connectors deliver peace of mind in applications where maintaining a sealed environment is non-negotiable.
In summary, the Hermetic Feedthrough Connectors offer a comprehensive solution for applications requiring airtight, reliable electrical connections. Their combination of a 1.5MPa leak test with nitrogen, flange mount design, current rating up to 10A, and pressure rating of 1000 Psi makes them a superior choice among Hermetic Cable Connectors and Hermetic Seal Connectors. These connectors ensure that your electrical systems remain protected, functional, and efficient in the most challenging environments.
| Product Name | Hermetic Feedthrough Connectors |
| Wire Gauge | 20-28 AWG |
| Mounting Type | Flange Mount |
| Connector Size | Up To 1 Inch Diameter |
| Durability | Up To 500 Mating Cycles |
| Contact Plating | Electroless Nickel |
| Leak Test | 1.5MPa WITH N2, NO LEAK |
| Pressure Rating | 1000 Psi |
| Number Of Pins | 1 |
| Current Rating | Up To 10A |
SSCore Hermetic Feedthrough Connectors are specifically designed to provide reliable and durable electrical connections in environments where airtight seals are crucial. These Hermetic Cable Connectors are ideal for applications requiring a robust hermetic seal to prevent gas or fluid leakage, ensuring the integrity of sensitive electronic systems. With a connector size of up to 1 inch in diameter and supporting wire gauges from 20 to 28 AWG, they offer versatility across various industries.
The Hermetic Seal Connectors from SSCore are extensively used in aerospace, medical devices, military equipment, and semiconductor manufacturing, where maintaining a controlled atmosphere is essential. Their leak test performance at 1.5MPa with nitrogen (N2) and guaranteed no leak ensures high reliability in harsh conditions, including vacuum environments and high-pressure systems. These connectors are perfectly suited for feedthrough applications in vacuum chambers, pressure vessels, and hermetically sealed enclosures.
Thanks to their durability of up to 500 mating cycles, SSCore Hermetic Feedthrough Couplers provide long-term service without compromising the hermetic seal or electrical performance. This makes them a preferred choice for critical systems that require frequent assembly and disassembly. The connectors come vacuum packaged to preserve their quality during storage and transit.
SSCore offers these high-quality Hermetic Feedthrough Connectors with a minimum order quantity of 5 pieces, priced competitively between 10 to 60 ￥ per piece, making them accessible for both small-scale and large-scale projects. The supply ability of 50,000 pieces per month ensures steady availability for mass production requirements. Delivery time ranges from 7 to 14 workdays, and payment terms include L/C, D/A, T/T, and D/P, providing flexibility to meet diverse client needs.
In summary, SSCore’s Hermetic Cable Connectors, Hermetic Seal Connectors, and Hermetic Feedthrough Couplers are essential components for any application demanding airtight electrical connections. Their combination of high performance, reliability, and flexible ordering options makes them an excellent solution for industries where hermetic sealing and electrical integrity are paramount.
SSCore offers customized Hermetic Connectors System solutions designed to meet your specific requirements. Our Hermetic Feedthrough Connectors feature a durable construction with up to 500 mating cycles, ensuring long-lasting performance. We provide Hermetic Feedthrough Assemblies and Hermetic Feedthrough Couplers with a flange mount type and connector sizes up to 1 inch in diameter, suitable for a wide range of applications.
Our connectors support wire gauges from 20 to 28 AWG and utilize electroless nickel contact plating for enhanced reliability and corrosion resistance. Each product is carefully packaged in a vacuum package to maintain quality and integrity during shipping.
With a minimum order quantity of 5 pieces and a competitive price range of 10 to 60 ￥ per unit, SSCore ensures flexible and cost-effective solutions. We have a supply ability of 50,000 pieces per month, enabling us to meet large-scale demands efficiently.
Delivery time is typically between 7 to 14 working days, and we offer multiple payment terms, including L/C, D/A, T/T, and D/P, to accommodate your preferences. Trust SSCore for reliable, high-quality Hermetic Feedthrough Assemblies and Couplers tailored to your needs.
Our Hermetic Feedthrough Connectors are designed to provide reliable and durable electrical connections in environments requiring hermetic sealing. For technical support, please refer to the product datasheets and installation manuals available on our website. We offer expert assistance to help with product selection, customization options, and troubleshooting to ensure optimal performance in your specific application.
We provide comprehensive services including connector customization, testing, and certification to meet industry standards. Our engineering team is available to support integration into your systems, offering guidance on installation procedures and maintenance best practices.
For warranty information and repair services, please consult the product warranty terms. We stand behind the quality of our Hermetic Feedthrough Connectors and are committed to delivering exceptional customer service throughout the product lifecycle.
Our Hermetic Feedthrough Connectors are meticulously packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static, moisture-resistant materials to prevent contamination and corrosion. The connectors are then securely placed in custom-designed foam inserts within sturdy, double-walled cardboard boxes to safeguard against mechanical shocks and vibrations.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All shipments are carefully labeled and handled with care to maintain the integrity of the hermetic seals. We also offer expedited and specialized shipping services upon request to meet urgent project deadlines.
Q1: What is the minimum order quantity for SSCore Hermetic Feedthrough Connectors?
A1: The minimum order quantity is 5 pieces.
Q2: What is the price range for these connectors?
A2: The price ranges from 10 to 60 ￥ per piece, depending on the specifications and quantity.
Q3: How are the Hermetic Feedthrough Connectors packaged?
A3: They are packaged in a vacuum package to ensure product integrity and protection during transportation.
Q4: What is the typical delivery time for an order?
A4: The delivery time is usually between 7 to 14 working days after order confirmation.
Q5: What payment terms does SSCore accept?
A5: SSCore accepts payment via L/C, D/A, T/T, and D/P.
Q6: What is the monthly supply capacity for these connectors?
A6: SSCore can supply up to 500,000 pieces per month.
